Fireplace Inserts

Bioethanol fireplace inserts are designed as supplemental heat sources rather than primary heating systems for whole homes. EcoSmart Fire's zero-clearance inserts effectively heat individual rooms ranging from 35 to 65 square metres [377 to 700 square feet], depending on burner configuration and room volume. This focused heating strategy is intentional: inserts deliver 90 per cent efficiency because ventless design retains all heat within the room, rather than losing it up a chimney.

For whole-home heating, consider two approaches: combine multiple inserts in key gathering spaces (living areas, gathering spaces), or use your existing central heating system with inserts adding warmth and ambience to high-use zones. A single insert won't replace your primary heat source, but it reduces energy demand in the room it occupies whilst delivering the aesthetic benefits of real flame. This targeted approach suits luxury residential design where thoughtful zone heating aligns with sustainable living principles.

Yes, ethanol fireplace inserts are straightforward to install compared to traditional fireplaces. Unlike wood-burning or gas fireplaces, there's no flue, gas line, or electricity connection required, which eliminates most of the structural and trade complexity. The zero-clearance technology means the appliance mounts directly against standard timber framing without additional wall spacing, giving you genuine flexibility in placement.

The installation typically follows three phases: build the framework to the specified opening dimensions, slide the appliance into the cavity and secure with standard screws, then complete your wall panelling and finishes. Single-sided inserts follow a 10-step sequence, from framework construction through media positioning, while fire pit kits simplify to 6 steps. Basic tools suffice: a power drill, screwdriver, and level. Models range from 25.7 kg [56.5 lbs] to 222.1 kg [488.6 lbs], and heavier units benefit from a second pair of hands, though no specialist trades or custom engineering is needed.

Flexibility is where ethanol fireplace inserts stand apart. Zero-clearance installation removes traditional constraints, so you can incorporate the fireplace at any renovation stage: before wall lining, mid-construction, or even as a retrofit into existing openings. Your finishing materials (marble, timber, concrete, or custom millwork) can be chosen independently, and the appliance fits into interior walls, under cabinetry, or recessed niches. After installation, fill with e-NRG bioethanol, ensure adequate room ventilation, and test the ignition.

Yes, a wall-mounted bioethanol fireplace can be installed in a rental property, provided you have written consent from your landlord or property manager.

Bioethanol models have a clear advantage in the rental context: no gas line, no flue, and no electrical connection are required. The fireplace runs entirely from bottled fuel, so there is no permanent utility infrastructure to negotiate. This removes the primary obstacles that would make a gas or wood-burning installation impractical or impossible in most rental agreements.

Installation does involve physical wall work. A recessed model requires a framed wall cavity; a surface-mounted model requires anchor fixings. Both create modifications that most tenancy agreements require prior landlord approval for. Obtain that consent in writing before any work begins.

EcoSmart’s fireplace inserts are mostly used for new construction when an entirely new fireplace is desired for a given space. They are not designed for the conversion or remodelling of an existing masonry or gas fireplace but could be used if the dimensions align.

To convert an existing fireplace we recommend using our fireplace grates or ethanol burners as noted above.

Ensure that the flue has been closed off and the relevant suppliers have officially detached all connections to utilities.

Minimum footprints by range:

• Frame (surface-mounted, zero clearance): 746 mm x 798 mm, 403 mm deep
• Flex (recessed cavity): 488 mm wide x 730 mm tall, 365 mm deep
• Heritage (hearth alcove): 860 mm wide x 910 mm tall, 539 mm deep

EcoSmart Fire bioethanol fireplaces feature true zero-clearance design. At the back and sides, the appliance frame installs directly into wood or metal stud walls with no spacing required between the unit and surrounding combustible materials.

For mantels and surrounds fitted above or beside the unit, specific vertical clearance distances apply. These differ depending on whether the material is combustible or non-combustible; your model's support page provides the exact dimensions and diagrams for your configuration.

Each model specifies a minimum room volume for adequate ventilation. This is an air quality requirement rather than a physical clearance distance. Your product specifications or installer will confirm the threshold for your room.

Before installation, verify your wall cavity dimensions against the product's cut-out specifications to ensure tolerances align.

Yes, you can install a TV above a wall-mounted ethanol fireplace using one of three engineered design solutions. EcoSmart Fire bioethanol fireplaces emit minimal radiant heat and require no venting, making TV placement above the opening viable when proper spacing or shielding is applied.

The three approved approaches are: (1) a non-combustible mantel or ledge installed between the fireplace and TV to deflect radiant heat; (2) a recessed niche that sets the TV into the wall above the fireplace, creating physical depth separation from the flame; (3) sufficient setback clearance, positioning the TV well above the opening to allow heat to dissipate naturally.

Overhead clearance from the flame to any overhead surface must be 1,500–2,000 mm [59–78 in], depending on your burner model. Check your installation manual for the exact specification. The fireplace itself has zero clearance at the back and sides, but materials positioned above it, including your TV bracket, are not supported by the fireplace frame. Your TV bracket must be independently anchored to the wall structure or a structural element, not the fireplace surround. This independent anchoring ensures safe mounting and code compliance for load-bearing fixtures.

Minimum room volume is determined by the burner capacity, not the fireplace footprint. EcoSmart Fire wall-mounted bioethanol fireplaces require between 40 m³ [1,413 ft³] and 90 m³ [3,178 ft³] depending on the model's heat output; compact models start at 40 m³, whilst larger designer series reach 90 m³. A few models in the largest range require up to 116 m³ [4,096 ft³].

These figures represent the air capacity needed to sustain clean combustion. EcoSmart Fire bioethanol fireplaces are engineered to operate safely in rooms of these volumes, meeting strict safety certifications. Natural air infiltration through doors, windows, and standard building construction provides adequate fresh-air exchange in rooms meeting the minimum volume.

The right fireplace scale often matches your room size naturally. A 40 m³ space (roughly 4 × 5 × 2 metres) suits compact models perfectly; a 90 m³ space (say, 6 × 5 × 3 metres) accommodates larger designer fireplaces. Rather than viewing this as a constraint, consider it a guide to matching the visual and thermal impact of the fireplace to the space itself.

Check your product's specifications for the exact minimum; the burner type determines the requirement, not the installation style.

EcoSmart Fire wall-mounted fireplaces are engineered for integration into most wall constructions, though the backing material and clearances matter. Suitable substrates include brick, stone, plastered masonry, fire-rated plasterboard, tile, and concrete. Stud walls work when lined with fire-rated plasterboard and hollow-wall anchors; fabric and wallpaper directly behind the unit must be avoided.

Recessed installations require non-combustible cavity backing, such as vermiculite board, fibre cement, or steel framing lined with fire board, to maintain safe operating temperatures. The Flex Series is purpose-built for architect-led recessed integration and uses specified mounting brackets and spacers to create the necessary air gap for heat distribution.

Installation details vary by model, so the manufacturer's installation manual governs clearances to combustibles and any structural considerations.

Three zero-clearance bioethanol series, three distinct design intents. Flex is the format-flexible range for bespoke and commercial builds, Heritage reimagines the traditional hearth for compact and high-rise settings, and Frame delivers low-profile linear flame for contemporary and retrofit interiors.

Where they diverge:

• Flex offers the widest format choice: 12 single-sided sizes from 378 to 4,030 mm [14.9 to 158.7 in] viewing width, available across eight configurations (single-sided, left corner, right corner, bay, double-sided, peninsula, island, and bench). The viewing area is all live flame. Select models include an optional decorative box and copper log set. Single-sided models share a 365 mm [14.4 in] depth.
• Heritage is the single-sided traditionalist. Three sizes, 860 to 1,624 mm [33.9 to 63.9 in] wide, with the tallest proportions and deepest 539 mm [21.2 in] profile of the three. A SECC steel grate and toughened glass fire screen come standard, creating the classic log-fire read inside a modern firebox. Zero-clearance, ventless installation makes it suited to compact living spaces and high-rise buildings.

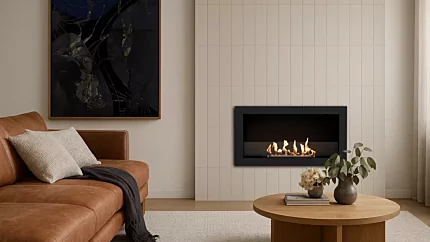

• Frame is the shallowest and lowest-slung, at 363 to 403 mm [14.3 to 15.9 in] deep and 598 mm [23.5 in] high. Five single-sided sizes, toughened low-iron glass for clearer flame, and a design that lets wall finishes be updated without disturbing the insert.

Flex for design freedom. Heritage for traditional proportions without the infrastructure. Frame for linear, low-profile statements and renovations.
