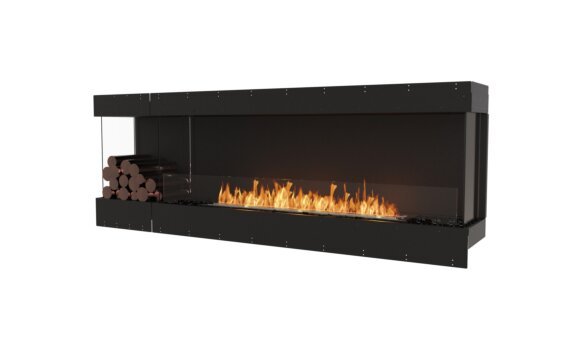

Flex 86BY.BXL Bay Fireplace Insert
Enjoy an alluring flame from any angle you look at it.
The Bay Fireplace Insert is designed for single room installation and features three open sides that enable the hypnotic flame to be viewed from the front and both left and right sides, providing an alluring focal point from multiple vantage points.
The Flex Bay fireboxes are ideal for commercial spaces like restaurants, bars and cafes, and residential settings where a stunning centrepiece is needed.

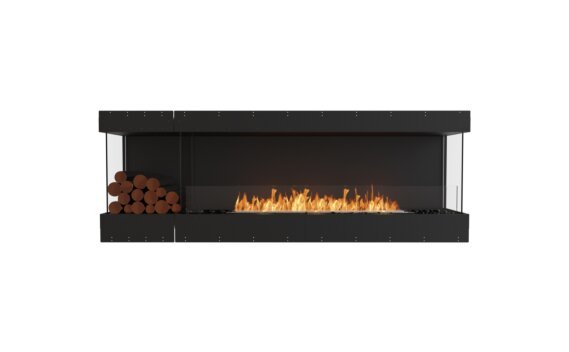

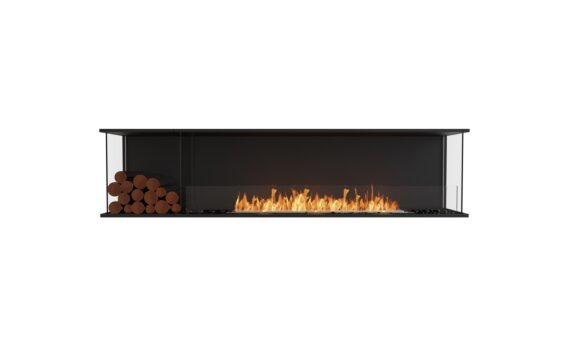

The Flex 86BY.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.
The longest of the XL Burner series, the XL1200 delivers a stunning linear flame. With a 10L capacity, this elongated burner can heat up to 65m2 and provides the ideal bioethanol fire for commercial and hospitality spaces such as open plan restaurants and bars.
Each burner holds 10L of fuel, and can deliver a stunning flame for up to 14 hours.
Configure & Buy
Buy online and get it delivered to your door.Inspiration
Key Features
Application
Indoor or outdoor single room application. With three open side, view the flame from multiple vantage points.
Colours
Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.
No gas or electricity
No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
Clean burning
All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney
Zero clearance
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
Quick and easy assembly
Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
Rust proof
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.
Luxurious finish
Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
Decorative side box
Includes one decorative side box to fill with your chosen noncombustible accessory.
Optional log sets
Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.
Wind screen
Included integrated windscreen sits flush behind frame.
Technical Specifications
Construction
- Weight 126kg [278lb]
- Model Dimensions mm [in] W 2273mm [89.5in] D 365mm [14.4in] H 807mm [31.8in]
- Viewing Area mm [in] W 2185mm [86in] D 340mm [13.4in] H 502mm [19.8in]
- Materials Mild Steel & Toughened Glass
- Colours
Accessories
Includes everything you need to easily operate and protect your investment for many years to come.Fuel Efficiency
Volume Capacity
Heats on Average
Minimal Room
Thermal Output
Burn Time
FAQ's
View AllHow to install a TV or AV equipment above an ethanol fireplace?
This design can be achieved as long as the TV is protected. You have 3 possible solutions:
Solution 1: The TV needs a non-combustible mantel/ledge to act as a heat shield
Solution 2: The TV needs to be recessed in a niche
Solution 3: The TV needs to sit back off the level of the flame
Where is the best place to install an ethanol fireplace?
Our ethanol fireplaces can be installed virtually anywhere - in walls, cabinets, high rise buildings, commercial / residential / hospitality spaces, indoors and outdoors. Because EcoSmart Fire’s ethanol fireplaces are ventless, they require no gas line, no electricity, and no chimney for a hassle free and cost effective installation. Our ethanol fireplaces have been designed and tested with safety as our top priority. We have outlined requirements for each ethanol burner, ethanol fireplace insert, and ethanol freestanding fireplace in our collection. These guidelines include minimum room size requirements and clearance recommendations for flammable materials and movable objects. Please refer to our manual for more information.
Is Bioethanol easily obtainable?
Yes, you can have fuel delivered to public and private premises in many countries.
How do I fill my ethanol fireplace?
With EcoSmart Fire’s proprietary tools and procedures, filling your ethanol fireplace with e-NRG bioethanol fuel is fast and easy.
Step 1: Remove the bottle nozzle cap and carefully insert into the filling point
Step 2: Push and hold the green button. The nozzle will automatically stop filling once the reservoir is full.
Step 3: Replace the nozzle cap.
You can view a step-by-step filling video.
Do bioethanol fireplaces produce heat?
Yes, although it does depend upon the size of the fireplace and also the size of the room itself. But a fire of an appropriate size can produce a good level of heat when considered properly in terms of its actual output and how it is positioned in the space. Bioethanol fires are a secondary source of heat that deliver a myriad of lifestyle benefits that can’t be achieved from primary heat sources such as radiators or reverse cycle air conditioning.
Can EcoSmart Fires be installed everywhere?
Almost everywhere! EcoSmart Fires cannot be installed into small rooms that are less than our minimum room size which is burner specific. For all other installations, you must comply with our compulsory clearances and installation instructions. Approval from building authorities may be required prior to installation in your area. Please make sure you contact appropriate parties before installing your EcoSmart Fire.
How much does it cost to maintain an ethanol fireplace?
EcoSmart Fire’s ethanol fireplaces require little maintenance. It is important to keep the lid closed when not in use to keep debris out of the ethanol burner that can cause corrosion and damages. The 304 stainless steel tank is built to last a lifetime if proper cleaning procedures are done when needed.
Do I need to service my ethanol fireplace in any way?
Yes, normal maintenance and care is very important! Instructions are included in the Installation, Operating and Maintenance Manual supplied with your EcoSmart Fire product.
