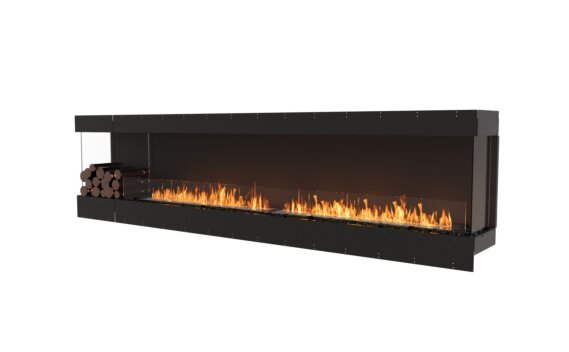

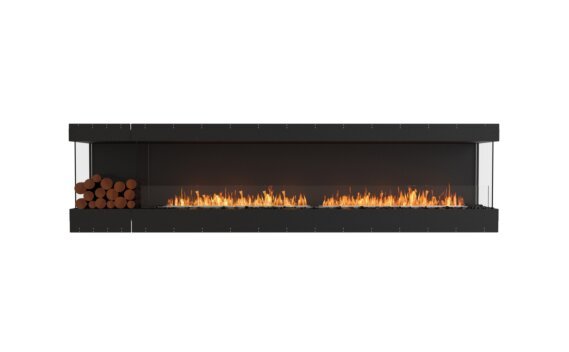

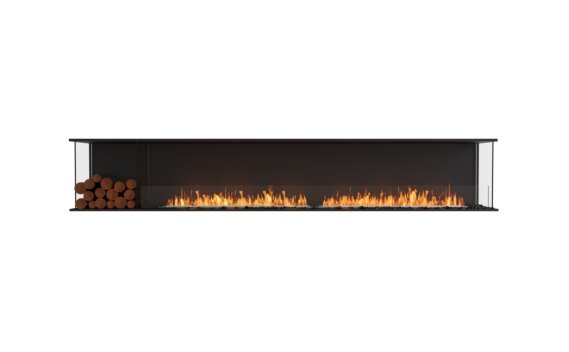

Flex 122BY.BXL Bay Fireplace Insert

Starts at 13,666.95 €
Write a Review

Enjoy an alluring flame from any angle you look at it.

The Bay Fireplace Insert is designed for single room installation and features three open sides that enable the hypnotic flame to be viewed from the front and both left and right sides, providing an alluring focal point from multiple vantage points.

The Flex Bay fireboxes are ideal for commercial spaces like restaurants, bars and cafes, and residential settings where a stunning centrepiece is needed.

The Flex 122BY.BXL comes with a Decorative Box on the left-hand side. The design is fitted with a glass panel that divides the box and the Firebox and creates an attractive streamlined look. Instantly transform any wall into a feature, indoors or out, with a stylish, clean-lined Flex Firebox.

One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL1200 Burners. With an overall heating capacity of 130m2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.

Each burner holds 10L of fuel, and can deliver a stunning flame for up to 14 hours.

Manufacturer approved surround for the BS EN16647 Compliant XL1200 burner.

Configure & Buy

Buy online and get it delivered to your door.

Select Fuel Type*

Ethanol Ethanol Burner In Stock: 7 days
Ethanol  - Studio Image by MAD Design Group

Select Burner Colour*

Stainless Steel In Stock: 7 days
Stainless Steel  - Studio Image by MAD Design Group

Add Accessories

Log Set Copper Decorative Media - Studio Image by Blinde Design
Log Set Copper Backorder: 14-16 wks +344.85 €
Log Set Brass Decorative Media - Studio Image by Blinde Design
Log Set Brass Backorder: 14-16 wks +344.85 €
  • Included Accessories:
  • Jerry Can 5L
  • Bottle Adaptor
  • XL Baffles
  • Black Glass Charcoal
  • Lighting Rod
  • Fire Lighter

Order Summary

  • Order Total: 13,666.95 €
    Price includes VAT. Shipping cost not included.
  • Availability: Unspecified
    Unspecified Ship Times
  • Standard Delivery: From 598.95 € (Zone 1)
    Final delivery cost will be calculated at checkout. Learn More
or use our express checkout options
* All times, dates, and inventory levels are subject to change at anytime.

Key Features

Application

Indoor or outdoor single room application. With three open side, view the flame from multiple vantage points.

Colours

Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.

No Gas or Electricity

No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.

Clean Burning

All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean burning, you don’t need a flue or a chimney

Zero Clearance

Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.

Quick and Easy Assembly

Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.

Rust Proof

Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.

Luxurious Finish

Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.

Decorative Side Box

Includes one decorative side box to fill with your chosen noncombustible accessory.

Optional Log Sets

Eye-catching accessory for the decorative side box. Made from stainless steel with a patina finish, they are available in two different finishes: Brass or Copper.

Wind Screen

Included integrated windscreen sits flush behind frame.

Technical Specifications

Construction

  • Weight 177kg [390lb]
  • Model Dimensions mm [in] W 3193 [126] D 365 [14.4] H 807 [31.8]
  • Viewing Area mm [in] W 3100 [122] D 340 [13.4] H 502 [19.8]
  • Materials Mild Steel & Toughened Glass
  • Colours
Our fireboxes are manufactured to the highest standards and in accordance with ISO 9001:2008.

Accessories

Includes everything you need to easily operate and protect your investment for many years to come.

Fuel Efficiency

Volume Capacity
10 L
2.6 Gal
Heats on Average
65m2
700ft2
Minimal Room
115m3
4061ft3
Thermal Output
15290 BTU/h
4.5 kW 17 MJ/h
Burn Time
9-14h
10 Litres
* These values are indicative only and may vary depending on the model purchased, installation environment, and the composition of the e-NRG bioethanol sourced in each country.
