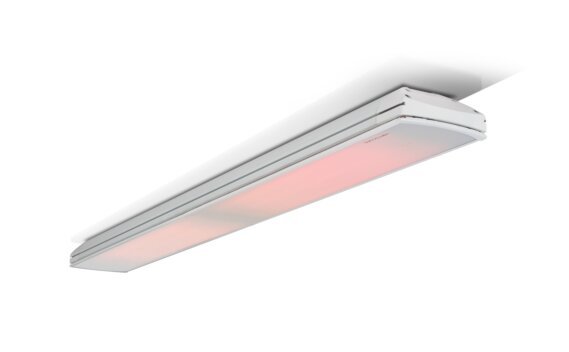

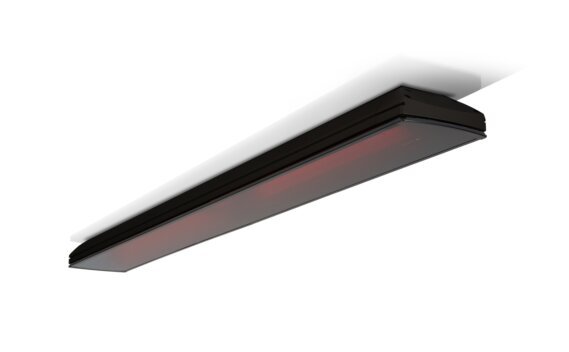

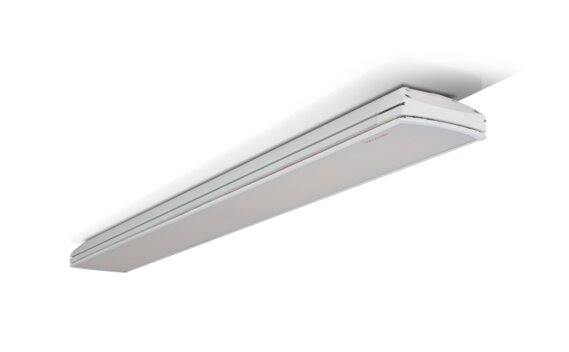

Vision 3200W Electric Radiant Heater
Subtle orange glow which is
only 30-40% of the light output
HEATSCOPE® Vision 3200W ambient heater emits medium-wave infrared light with its parallel carbon heating strands. Since the already low luminosity of less than 300 lux is still dimmed by the glass-ceramic front, a cozy atmosphere is created.
Configure & BuyBuy online and get it delivered to your door.

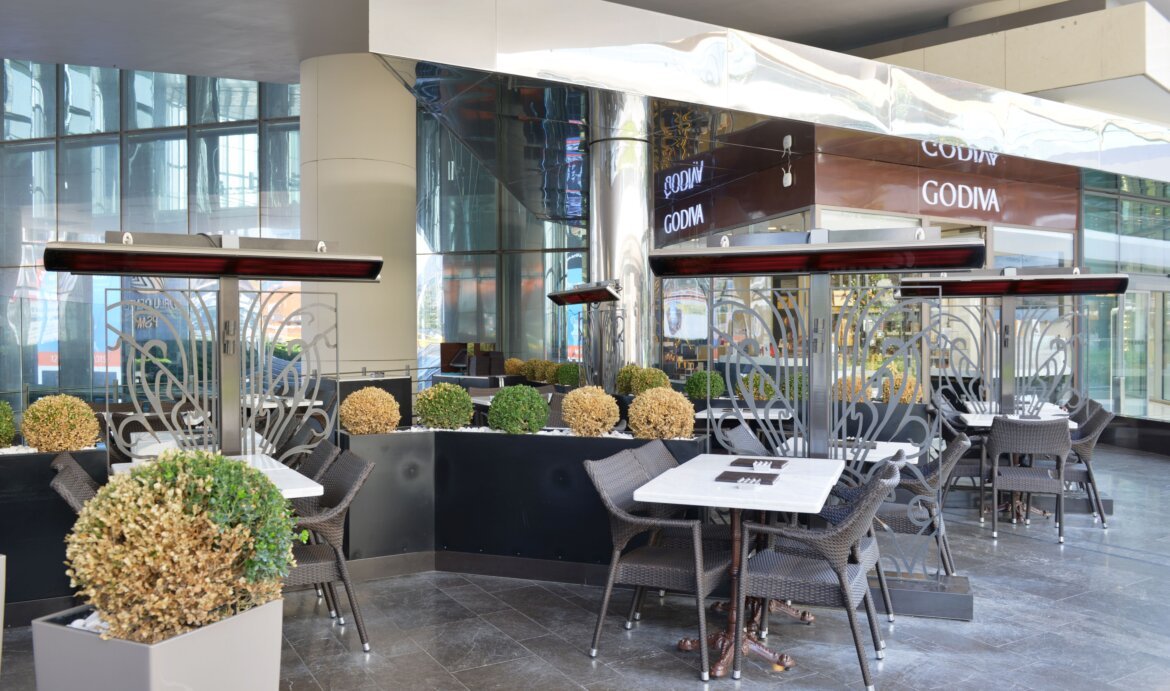

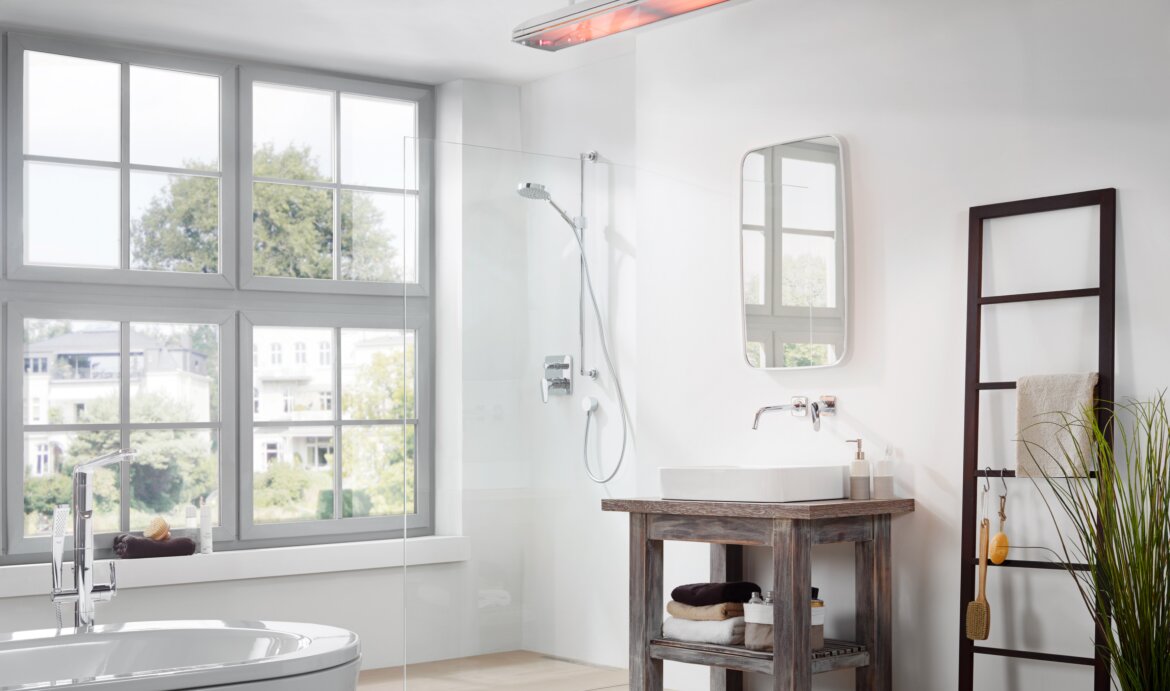

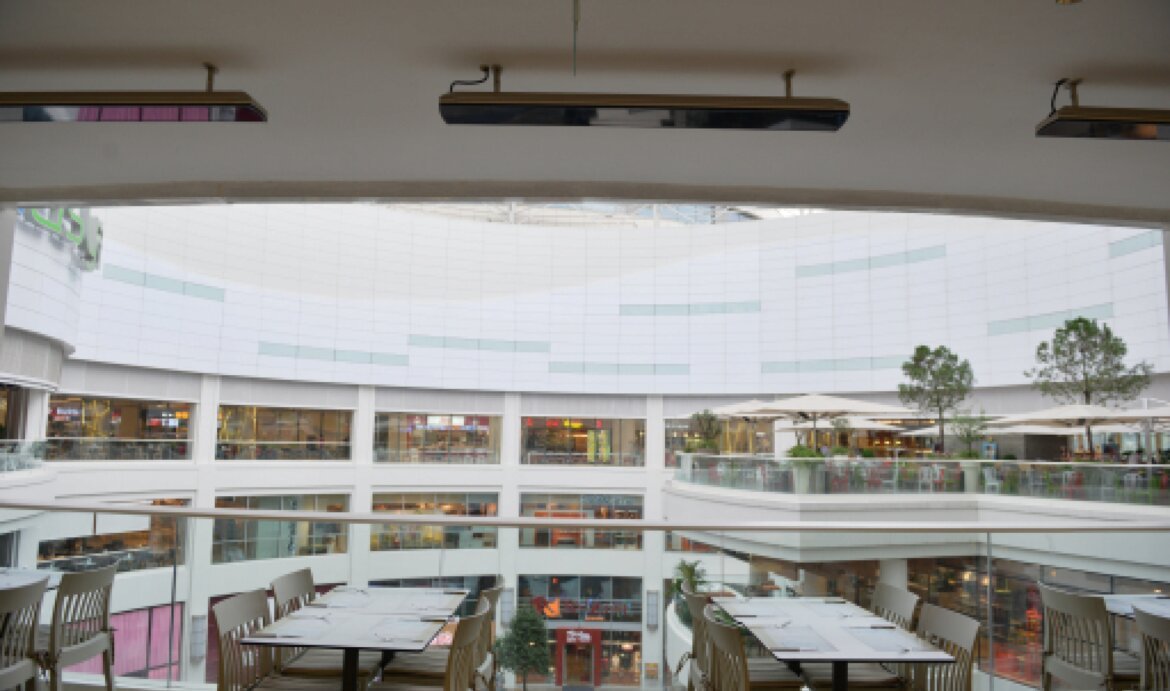

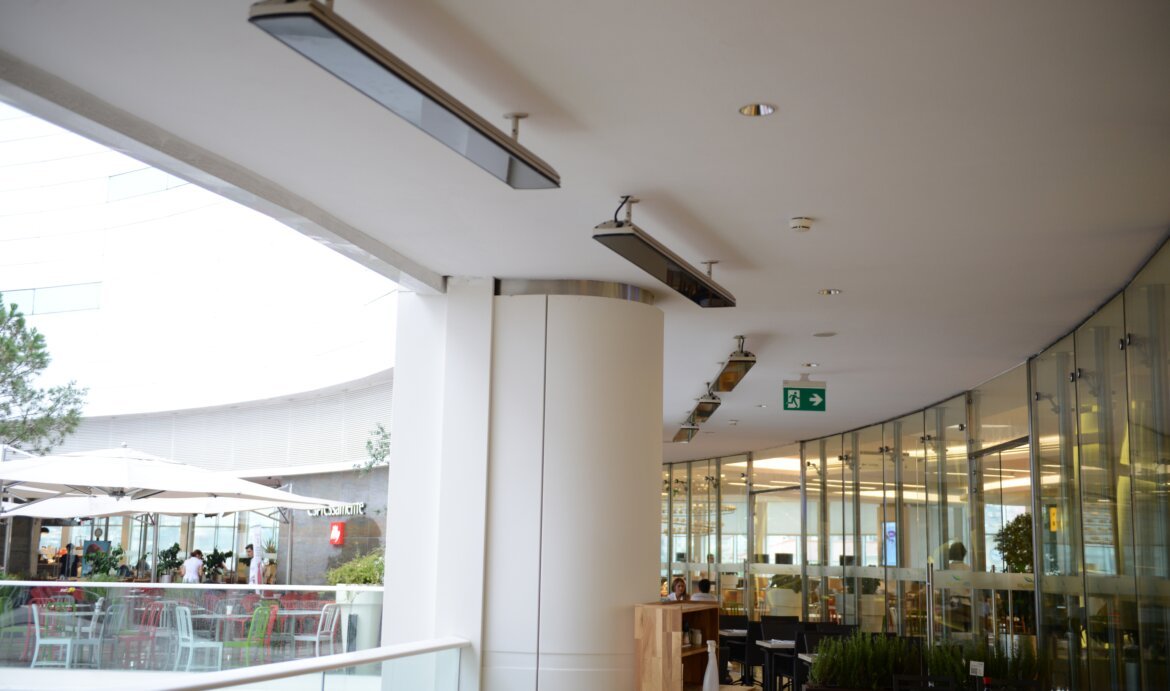

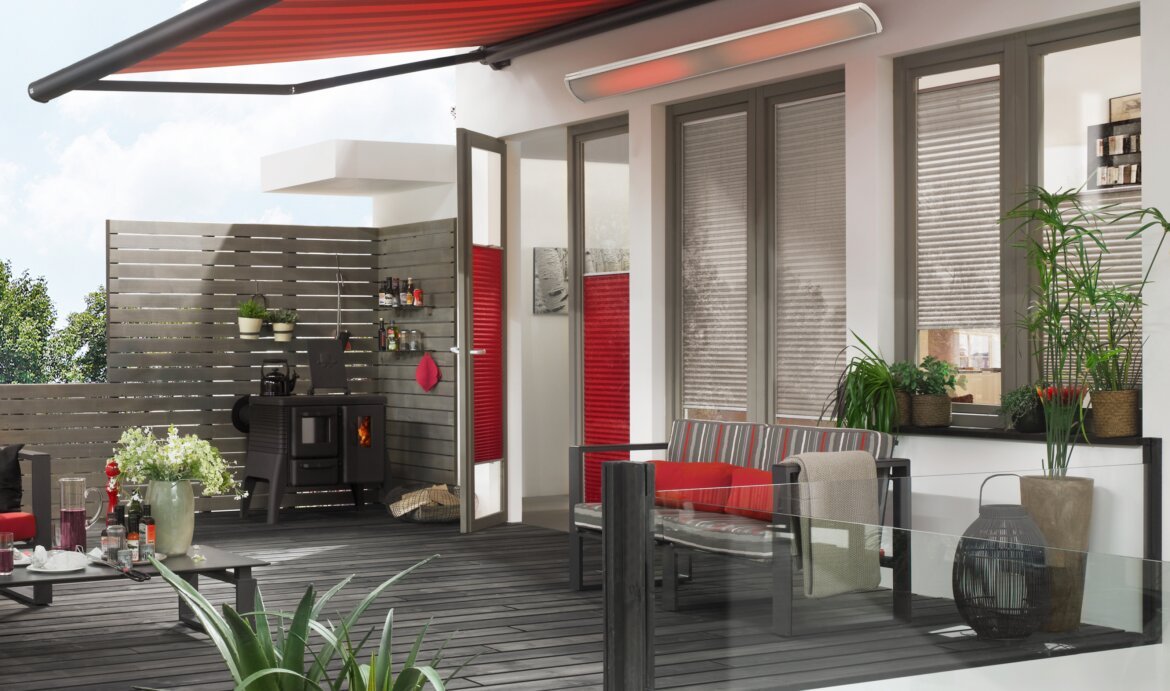

Customer Inspiration #maddesigngroup
Model SpecsTechnical information about the model and the included burner.
C&I ManualClearances & Installation information about the product.
User ManualInstallation, operation and maintenance manual.
Efficiency made simple
HEATSCOPE® is committed to efficiency! All VISION, SPOT and PURE radiant heaters were developed in accordance with the newest findings concerning the mid-wave IR range. This means that between 90% and 94% of the energy used is turned directly into ambient heat.
All HEATSCOPE® design radiant heaters produce natural infrared heat in the (fast) mid-wave IR range. This means that the heat feels particularly pleasant and is effective exactly where it is needed – that’s directly under the first layers of skin, but not too deep in the tissue.
Inviting & cosy
Other radiant heaters use light tubes to produce heat as a by-product – at HEATSCOPE® we exclusively use innovative carbon technology: two carbon spirals are powered with an electric current, they begin to glow and produce a particularly pleasant warmth.
Output peaks are a thing of the past with HEATSCOPE® power heaters. Although the heaters start up slowly, they reach 100% in no time: the range of SPOT models take only 15 seconds, and the VISION & PURE range takes a maximum of 30 seconds owing to the glass front.

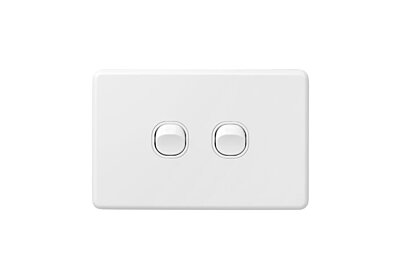

The separate model ranges are either delivered with their own IR remote control or with a 4-wire cable for integration into an external control system (output dependent).
Delivers pleasant heat without the distraction. Clean-cut, modern designs and colours easily blend into any decor.
All models are certified with an IP rating for protection against dust, splash-water, and wind.
No aggressive red light
Produces a very ambient, modest light based on double carbon heating elements.
Up to 94% of the energy used is turned into ambient heat and transferred directly to nearby people and surfaces for maximum efficiency.
Operate and sync your heater(s) with your smart device (compatible with Alexa and Google Assistant). *Internet connection and additional accessories required
Our radiant heaters come with an industry leading two-year limited warranty.

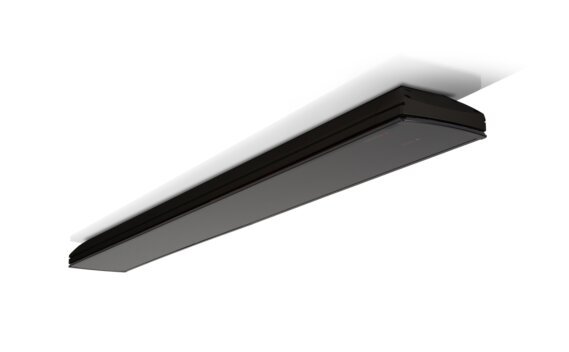

- MPN (Black) MHS-VE3200AB.100
- MPN (White) MHS-VE3200WT.100
- Weight 10kg [22.05lb]
- Model Dimensions mm [in] L 1660mm [65.4in] W 184mm [7.2in] H 87mm [3.4in]
- Application Indoor & Outdoor
- Materials Aluminum body, glass ceramic front
AccessoriesIncludes everything you need to easily operate and protect your investment for many years to come.
What type of infrared waves are produced by other heaters available in the market?
Other infrared heaters work with short waves, and produce heavy red light with an unnatural, uncomfortable heat.
Why is HEATSCOPE® heater better than other outdoor electric heaters?
All HEATSCOPE® heaters are manufactured in Germany with state-of-the-art technology, and they combine the best in design and heating efficiency. The warmth you feel from a HEATSCOPE® radiant heater is much more comfortable and less harsh on your skin due to the reduced light. This means your home is using a greener and smarter heater with guaranteed quality for years to come.
How many amperes does HEATSCOPE® radiant heaters draw?
- Spot – 12.17 amps at 100% power
- Vision – 13.91 amps at 100% power
- Pure – 13.04 amps at 100% power
What is infrared radiant heating technology?
It’s a natural and efficient form of heating where the appliance radiates electromagnetic waves uniformly like sunbeams, providing a pleasant and targeted warmth to the surfaces of objects and people within the space.
Are HEATSCOPE® heaters supplied with a plug?
No, they are supplied with a power cable and must be hard wired to the electrical circuit.
What is the minimum height clearance required?
The lower edge of the heater must be at least 1800mm from the ground for wall mounted installations, and 2000mm for ceiling mounted.
Can HEATSCOPE® heaters be mounted directly on a wooden structure?
HEATSCOPE® infrared heaters are supplied with optional mounting accessories such as extension rods. When used, it is safe to mount the appliance to the wood supporting structure as it provides the minimum clearance from combustible materials.

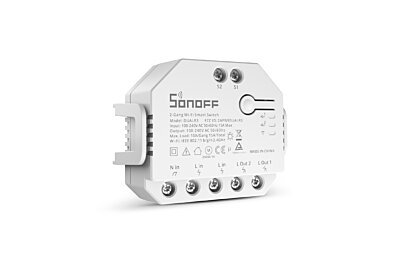

What’s the advantage of installing a WiFi switch?
If you choose the optional wall switch with WiFi connectivity, then you can use your smartphone to turn the HEATSCOPE® on or off. It’s a simple and efficient solution, making outdoor heating easier and more comfortable.
